HOKUYO SAFETY LASER SCANNER

HOKUYO SAFETY LASER SCANNER



Safety Laser Scanners are presence sensing devices, also known as active opto-electronic protective devices responsive to diffuse reflection (AOPDDR). They are used to safely monitor stationary or mobile applications and are commonly used in robotic work cells or on autonomous mobile robots (AMR) and automated guided vehicles and carts (AGV, AGC). Safety Laser Scanners are one of the most effective presence sensing technologies as they can cover a wider area than compared to other solutions. The safety monitoring area generally comprises a wide warning zone and a narrower protection zone.

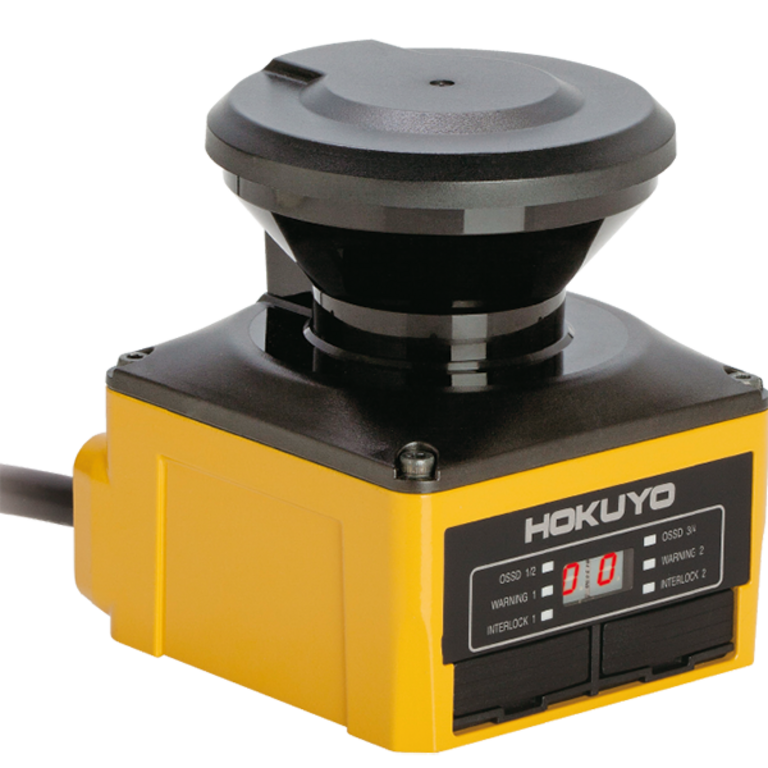

The UAM-05LP is a compact and light-weight safety scanner which can be mounted in confined spaces. It uses a 2D LiDAR system to monitor a 5 meter protection zone, with up to 20 meter warning area, and has a 270° field-of-view. It is equipped with an Ethernet interface, so distance data and intensity output values can be captured and sent to control systems.

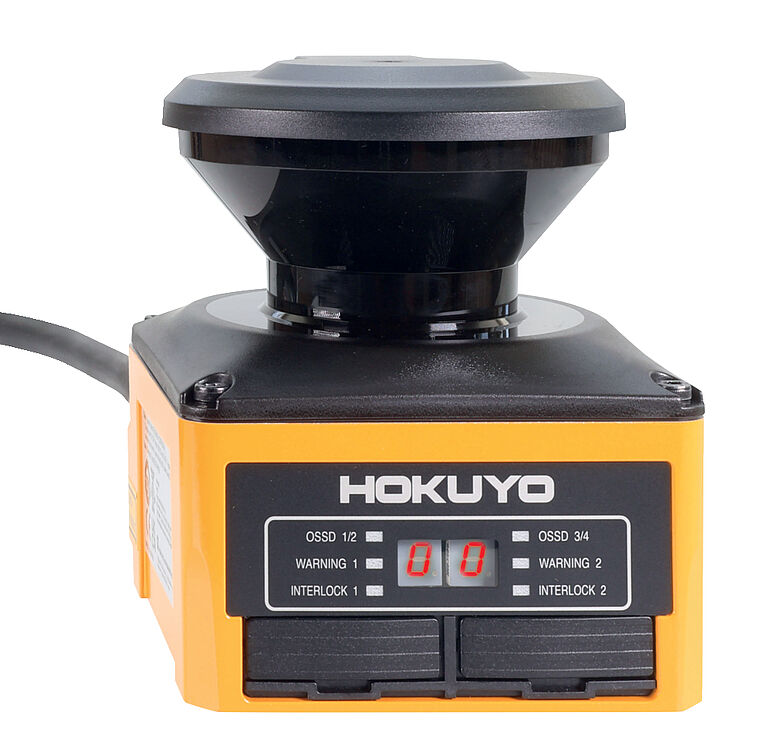

Status is indicated on the front display by 6 LEDs and a pair of 7 segment displays, which will indicate operation status and fault codes. The front also has access ports for a MicroSD card and USB port for computer programming.

Special brackets are available for base or rear mounting, and a cover bracket prevents damage from materials falling on the scanner head.

The UAM-05LP conforms to standards: IEC61469-1/3 Type 3; IEC61508 SIL2; ISO13849-1 PLd Category 3; UL508; UL1998; UL61496-1 Type 3; CSA C22.2 No. 14.

Physical features

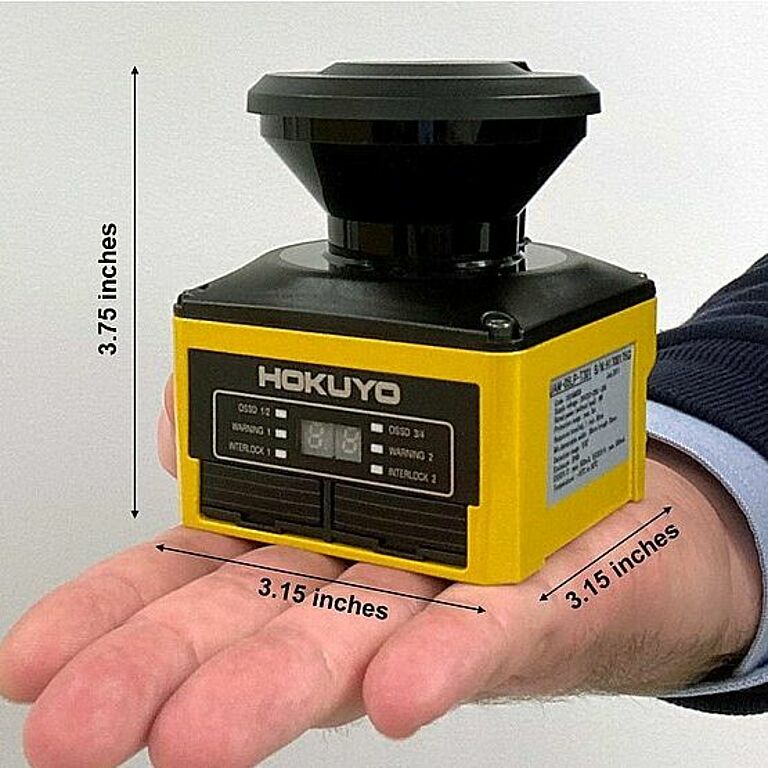

Dimensions

  • 3.75 inches x 3.15 inches x 3.15 inches.

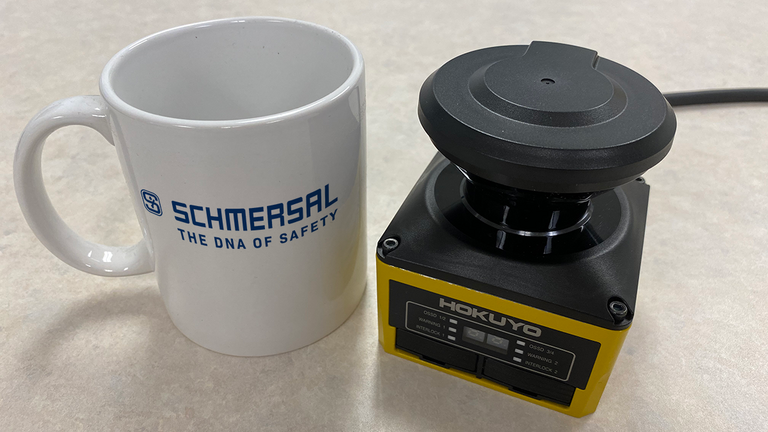

  • Roughly the size of a standard coffee mug

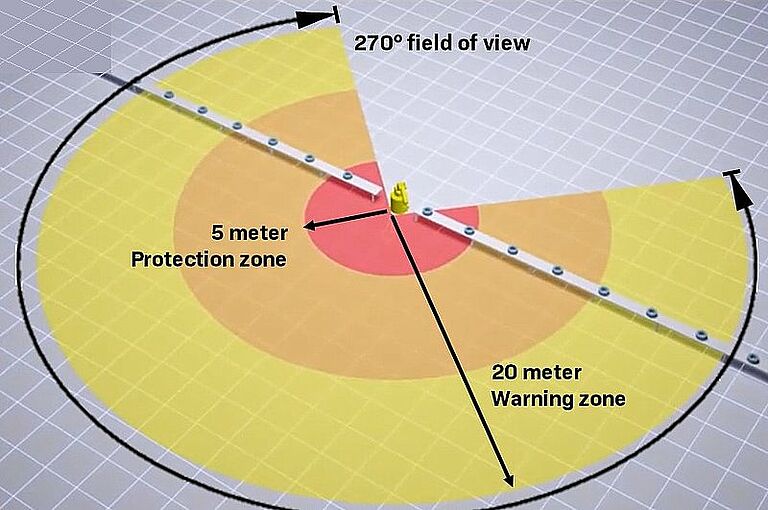

Scanning field

  • 270° field of view | 5 M protection zone | 20 M warning zone

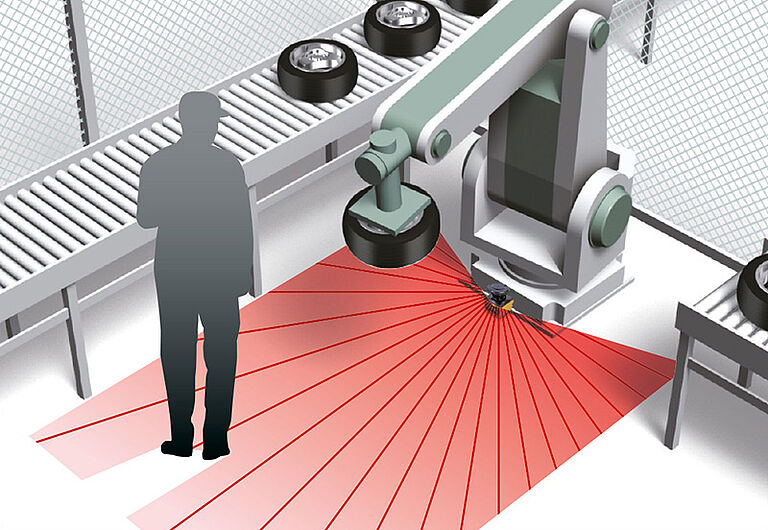

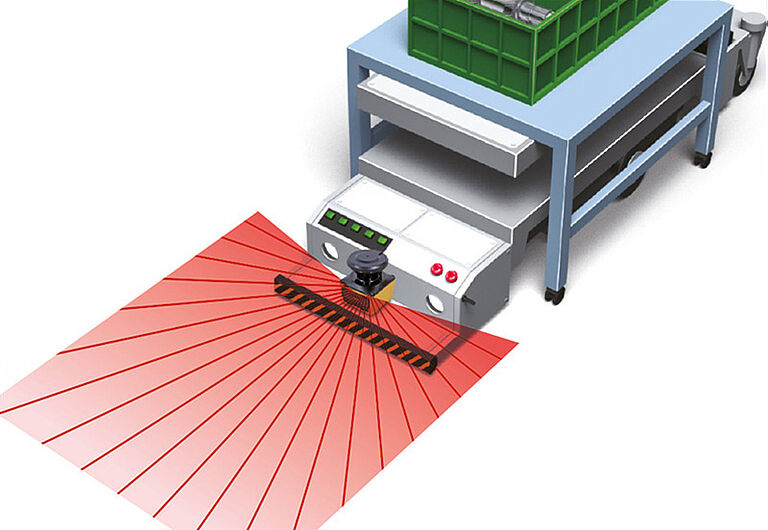

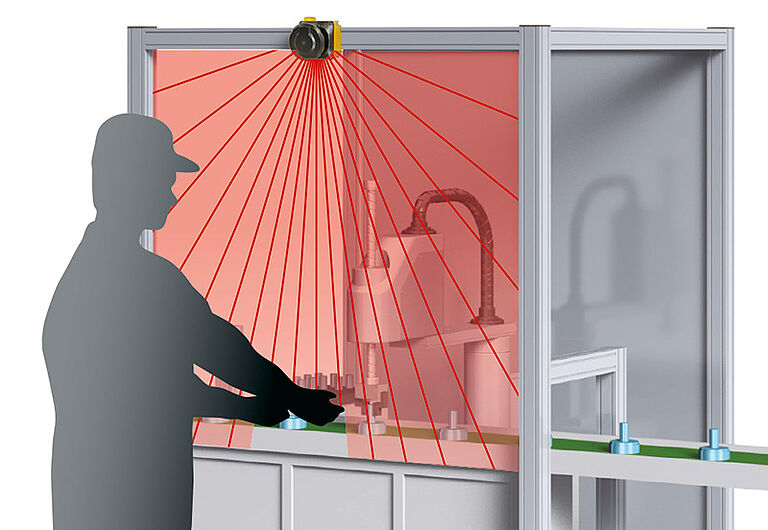

Typical Applications

As one of the smallest scanners on the market, the UAM safety laser scanner provides a reliable solution for maximizing safety and preventing potentially unsafe situations in many industrial sectors.

Product Details

UAM-05LP

Scanning Field

270 degree detection angle
5 meter protection zone
20 meter warning zone

Features

Data Output via Ethernet
Protection modes:
       2 parallel protection zones or
       1 protection zone with 2 warning zones
Up to 32 configurable zone-sets
Encoder inputs for AGVs (2)
Muting- and Interlock Function
Master-Slave-Function
User-friendly configuration software

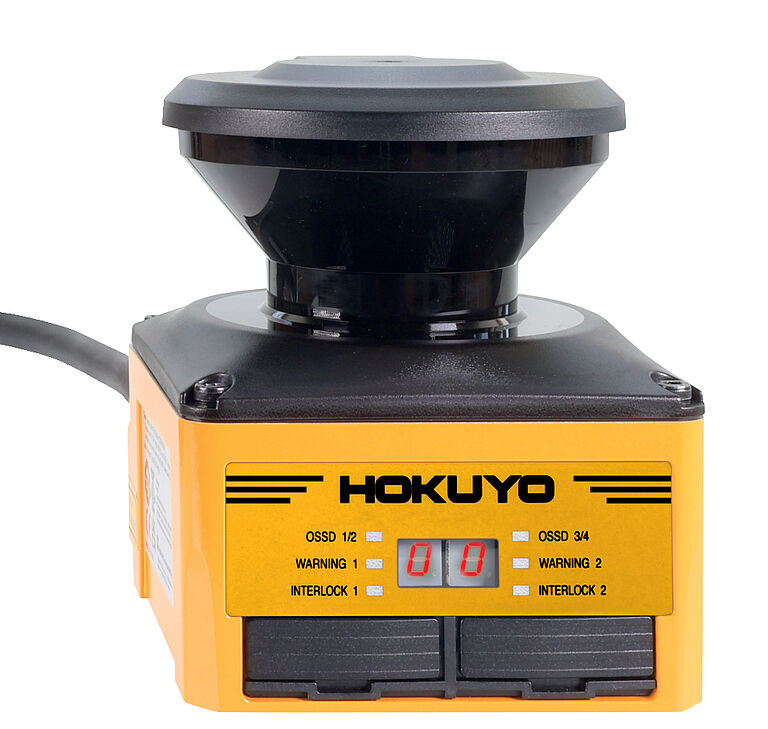

UAM-05LPA (Advanced)

Scanning Field

270 degree detection angle
5 meter protection zone
30 meter warning zone

Features

Data Output via Ethernet
Protection modes:
       2 parallel protection zones or
       1 protection zone with 2 warning zones
Up to 32 configurable zone-sets
Encoder inputs for AGVs (4)
Muting- and Interlock Function
Master-Slave-Function
User-friendly configuration software

Advanced improvements

Improved dirt/dust/moisture resistance
Increased resistance to dust +/-20mm accuracy
Improved calibration software
Improved noise resistance
Improved light interference resistance
Improve accuracy for short-range detection
Programmable via Ethernet connection – I/O & config
Scan Angle Error Improvement





ORDERING CODES



Sensor Units

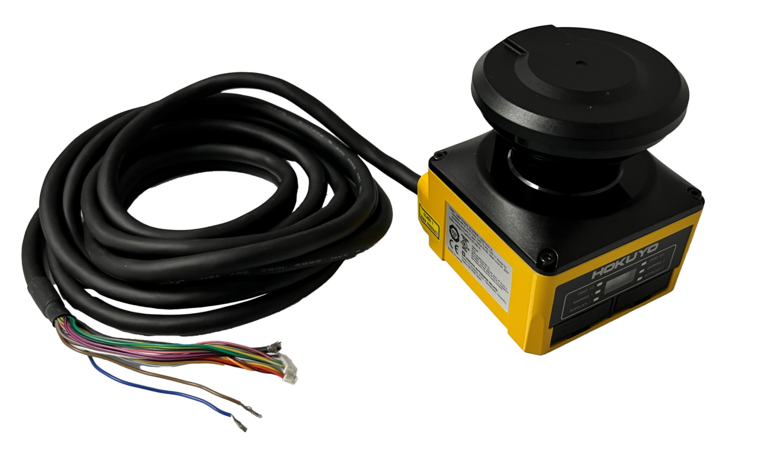

UAM-05LP-T301      base unit with 3 meter cable, flying leads

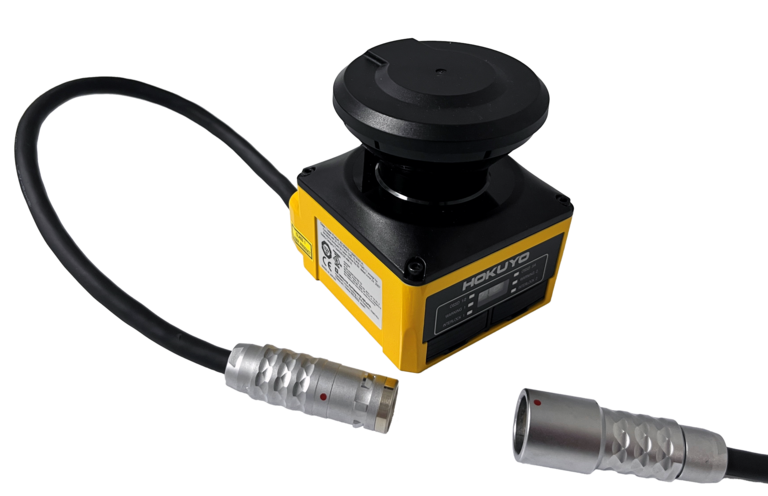

UAM-05LP-T301C    base unit with 300 mm cable, with connector

UAM-05LPA-T301      Advanced base unit with 3 meter cable, flying leads
UAM-05LPA-T301C    Advanced base unit with 300 mm cable, with connector


Extension cables (T301)

UAM-5C10       10 meter cable
UAM-5C20       20 meter cable

Extension cables (T301C)

UAM-5C02C     2 meter cable
UAM-5C05C     5 meter cable
UAM-5C10C     10 meter cable
UAM-5C20C     20 meter cable

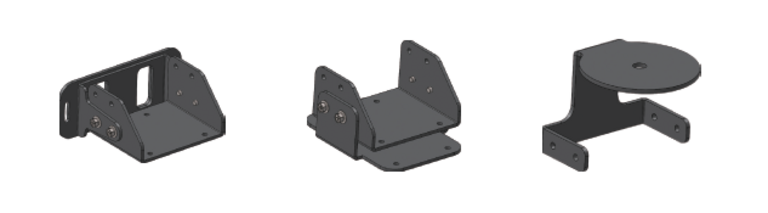

Mounting brackets

UAM-BK03       Base mounting bracket
UAM-BK04       Rear mounting bracket
UAM-BK05       Cover bracket (protects lens from impacts from top)

Additional accessories

UAM-W002      Replacement lens
UAM-ENET       Ethernet cable, 3 meters

Programming software

Programming of your UAM Scanner is easy with the Hokuyo UAM Project Designer software. Check out this video where Ryan Davison quickly configures a new program in an active scanner.

Download the Hokuyo UAM_Project Designer_4.0.0 software

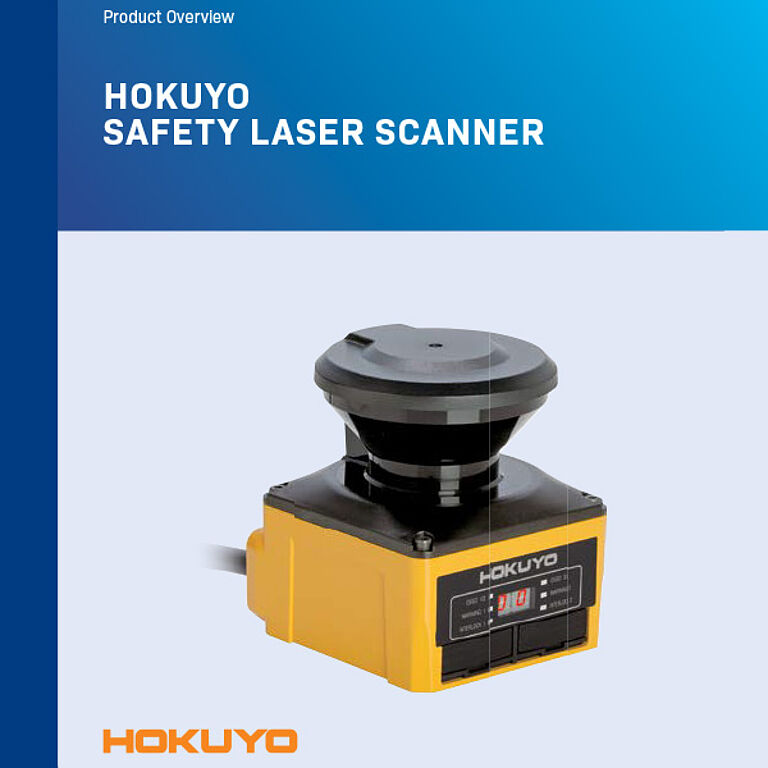

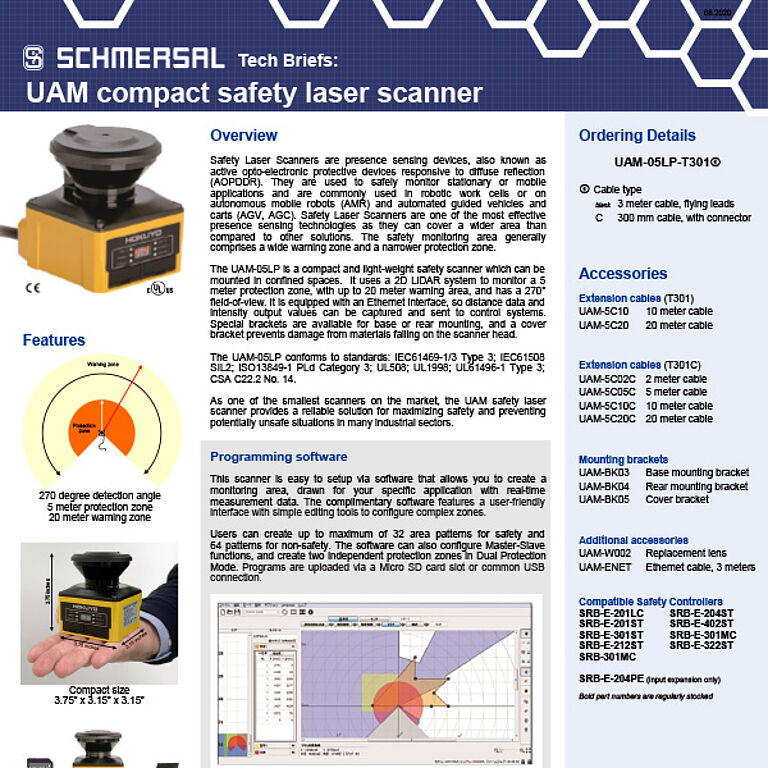

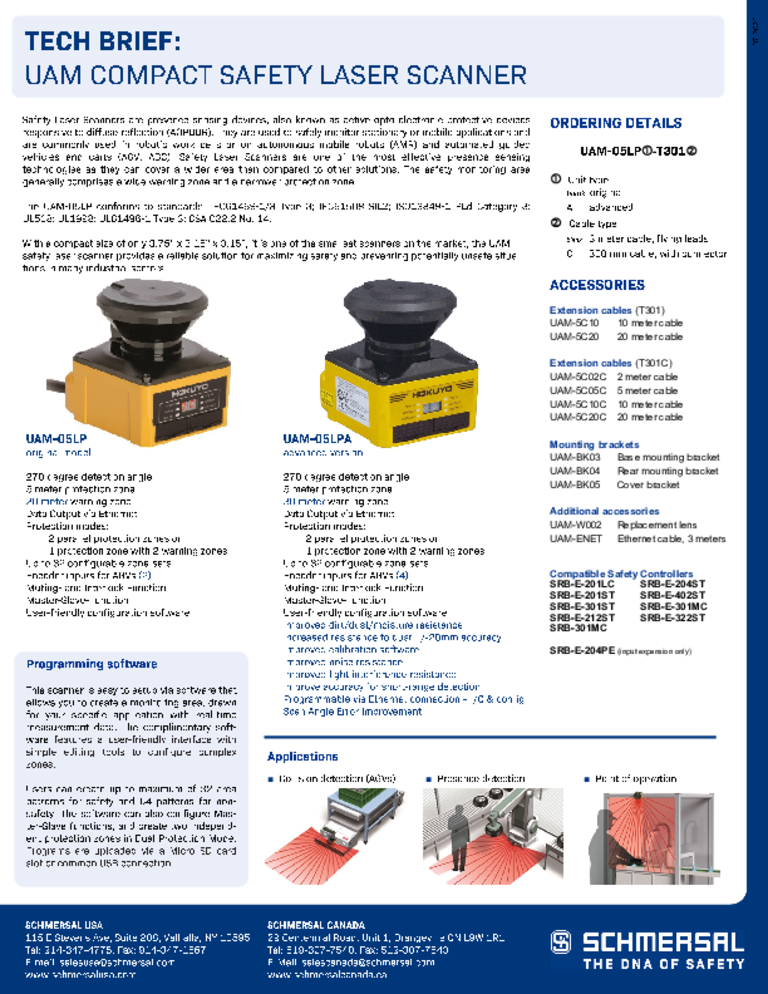

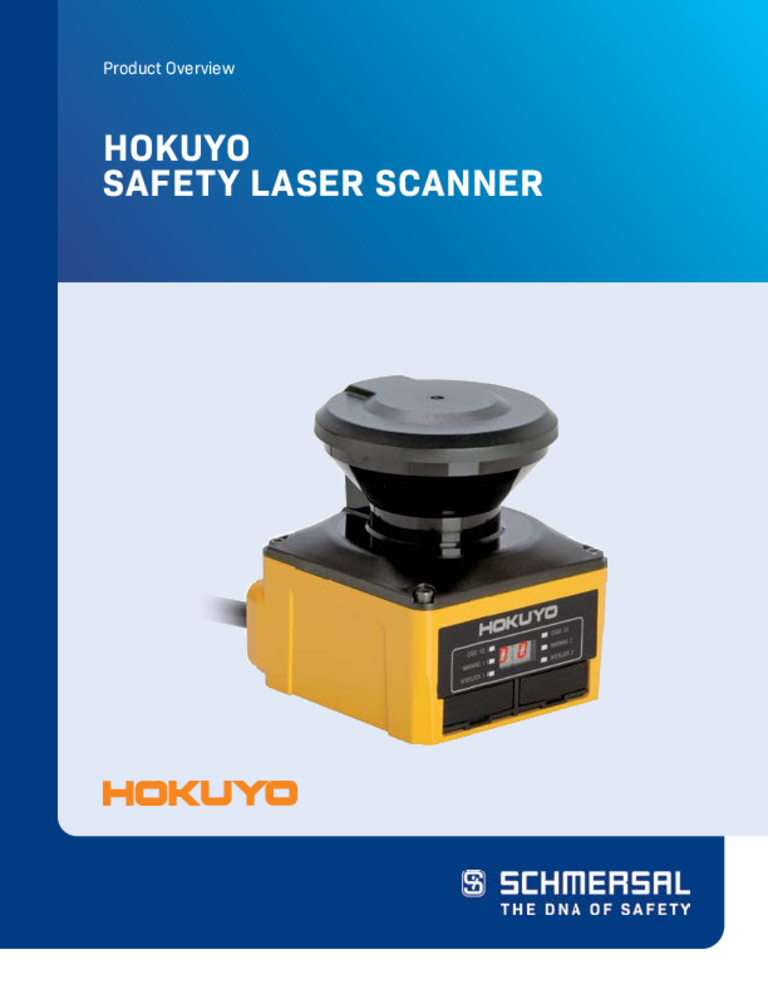

Reference Materials
